Pompa Lumpur Vertikal
>
|
| Tempat asal | Sichuan, Tiongkok |
| Nama merek | horizontal-slurrypump.com |
| Sertifikasi | ISO9001 |
| Nomor model | OEM |
| Dokumen | Brosur Produk PDF |

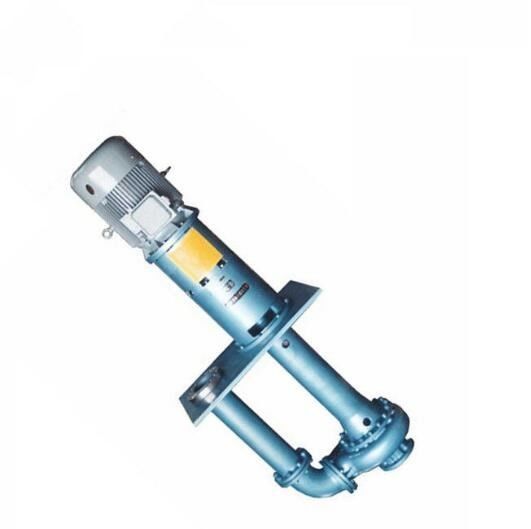

Pompa Lumpur Sentrifugal Tekanan Tinggi, Pompa Limbah Vertikal Terendam
Penggunaan Utama
Pompa lumpur sentrifugal vertikal seri ZAL pompa lumpur submersible dirancang untuk mentransfer air, cairan korosif, minyak, asam sulfat, asam klorida, asam asetat, asam fluorida, asam nitrat, alkali, pelarut organik .etc
Rincian Produk
| Keuntungan | Gambar | |
| Motor | Pastikan pengoperasian motor yang efisien, aman, dan stabil | |
| Rotor |
- Penempaan presisi -permukaan diperlakukan dengan menghilangkan kelembaban dan karat -Operasi halus dan konsentrisitas tinggi |
|
| Segel Mekanis |
-Kinerja penyegelan yang baik, ketahanan aus yang tahan lama, paduan tahan korosi -Cocok untuk korosif, suhu tinggi dan kondisi kompleks lainnya |
|
Parameter Teknis
|
Model
|
Performa Air Jernih |
Motor pendukung
|
|||||
|
Kecepatan berputar N |
Mengalir Q |
Kepala H |
Kekuatan poros Pa |
efektivitas η |
|||
| r/mnt | (m³/jam) | M | kw | % | |||
|
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
| 332 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
|
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
|
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
|
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
| 185 | 42.2 | 39.4 | 58.9 | ||||
| 239 | 34.1 | 45 .1 | 54.2 | ||||
|
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
| 124 | 18.9 | 11.8 | 58.9 | ||||
| 160 | 15.3 | 13.5 | 54.2 | ||||
|
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
| 141 | 41.6 | 31.0 | 56.5 | ||||
| 157 | 36.5 | 33.2 | 52.3 | ||||
|
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
| 94 | 12.4 | 7.1 | 56.5 | ||||
| 122 | 8.4 | 8.7 | 52.3 | ||||
|
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
| 97 | 45.8 | 26.4 | 45.8 | ||||
| 120 | 43.4 | 28.8 | 45.6 | ||||
|
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
| 65 | 20.5 | 7.9 | 45.8 | ||||
| 80 | 19.4 | 8.6 | 45.6 | ||||
|
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
|
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
|
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
| 47 | 51 | 19.1 | 34.1 | ||||
| 65 | 37.9 | 22.1 | 30.3 | ||||
|
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
| 31 | 22.2 | 5.5 | 34.1 | ||||
| 43 | 16.5 | 6.4 | 30.3 | ||||
|
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
| 63 | 37.8 | 18.7 | 39.4 | ||||
| 85 | 29.3 | 20.7 | 33.5 | ||||
|
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
| 42 | 16.9 | 5.6 | 39.4 | ||||
| 57 | 13.1 | 6.2 | 33.5 | ||||
|
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
| 24.7 | 9.2 | 1.6 | 38.6 | ||||
| 38.0 | 6.0 | 2.0 | 31.2 | ||||
|
910 |
10.8 | 4.3 | 0,4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
| 15.6 | 3.7 | 0,4 | 38.6 | ||||
| 24.0 | 2.4 | 0,5 | 31.2 | ||||
|
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
| 42.3 | 34.3 | 13.7 | 33.8 | ||||
| 47.6 | 30.5 | 14.1 | 28.1 | ||||
|
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
| 28.3 | 15.3 | 4.1 | 33.8 | ||||
| 31.8 | 13.6 | 4.2 | 28.1 | ||||
|
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
|
910 |
6.6 | 9.2 | 0,6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
| 12 | 8.1 | 0,7 | 36.6 | ||||
| 14.9 | 7.2 | 0,7 | 37.6 | ||||
|
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
|
910 |
6.0 | 6.8 | 0,4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
| 12.8 | 6.1 | 0,5 | 42.4 | ||||
| 16.4 | 5.6 | 0,6 | 44.6 | ||||
Dimensi Instalasi
