Pompa Lumpur Vertikal
>
|
| Tempat asal | Sichuan, Tiongkok |
| Nama merek | horizontal-slurrypump.com |
| Sertifikasi | ISO9001 |
| Nomor model | OEM |
| Dokumen | Brosur Produk PDF |

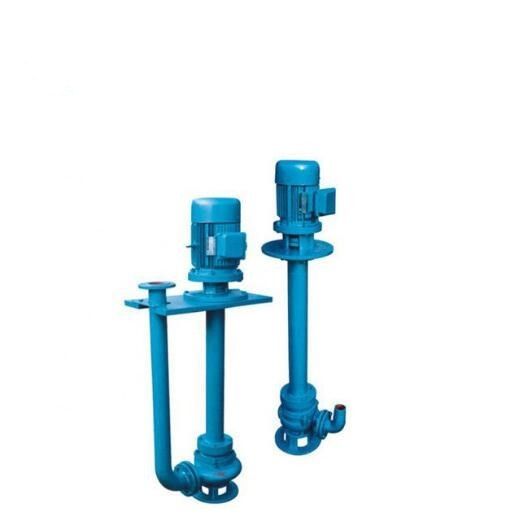

Pompa Bah Kantilever Vertikal Listrik Tekanan Tinggi yang Efisien Pompa Padat Spindle Slurry
Data Operasi
| Nama | Pompa Lumpur Vertikal seri ZJL |
| Kepala | 4 ~ 60 m |
| Kapasitas | 6 ~ 364m³/jam |
| Ukuran Debit | 40mm ~ 200mm |
| Ukuran Saluran Masuk | 50mm ~ 250mm |
| Efisiensi Maksimal | 70% |
| NPSH | 1,4m~3,5m |
| Daya Motor Maks yang Diijinkan | 315kw |
| Diameter | 200mm~470mm |
Dimensi Instalasi
Aplikasi
Mereka dirancang untuk menghasilkan bubur abrasif, partikel besar, dan kepadatan tinggi dan diterapkan di berbagai bidang seperti metalurgi, pertambangan, batu bara, listrik, bahan bangunan, dan perlindungan lingkungan.
Parameter Teknis
|
Model
|
Performa Air Jernih |
Motor pendukung
|
|||||
|
Kecepatan berputar N |
Mengalir Q |
Kepala H |
Kekuatan poros Pa |
efektivitas η |
|||
| r/mnt | (m³/jam) | M | kw | % | |||
|
150ZJL-A35 |
980 |
198 | 17.9 | 15.3 | 63.1 |
Y250M-6 V1 380V 37kw |
|
| 332 | 13.2 | 17.5 | 68.1 | ||||
| 364 | 12.1 | 18.0 | 66.8 | ||||
|
730 |
147 | 10.0 | 6.3 | 63.1 |
Y200L-8 V1 380V 15kw |
||
| 247 | 7.3 | 7.2 | 68.1 | ||||
| 271 | 6.7 | 7.4 | 66.8 | ||||
|
590 |
119 | 6.5 | 3.3 | 63.1 |
Y160L-10 V1 380V 11kw |
||
| 200 | 4.8 | 3.8 | 68.1 | ||||
| 219 | 4.4 | 3.9 | 66.8 | ||||
|
100ZJL-A36 |
1480 |
113 | 51.1 | 32.1 | 54.1 |
Y250M-4 V1 380V 55kw |
|
| 185 | 42.2 | 39.4 | 58.9 | ||||
| 239 | 34.1 | 45 .1 | 54.2 | ||||
|
970 |
76 | 22.9 | 9.6 | 54.1 |
Y200L1-6 V1 380V 18.5kw |
||
| 124 | 18.9 | 11.8 | 58.9 | ||||
| 160 | 15.3 | 13.5 | 54.2 | ||||
|
80ZJL-A33 |
1480 |
100 | 46.8 | 26.8 | 52.6 |
Y225M-4 V1 380V 45kw |
|
| 141 | 41.6 | 31.0 | 56.5 | ||||
| 157 | 36.5 | 33.2 | 52.3 | ||||
|
970 |
42 | 16.8 | 5.5 | 52.6 |
Y180L-6 V1 380V 15kw |
||
| 94 | 12.4 | 7.1 | 56.5 | ||||
| 122 | 8.4 | 8.7 | 52.3 | ||||
|
65ZJL-A38 |
1470 |
75 | 52.3 | 23.1 | 42.7 |
Y225S-4 V1 380V 37kw |
|
| 97 | 45.8 | 26.4 | 45.8 | ||||
| 120 | 43.4 | 28.8 | 45.6 | ||||
|
970 |
50 | 23.4 | 6.9 | 42.7 |
Y180L-6 V1 380V 15kw |
||
| 65 | 20.5 | 7.9 | 45.8 | ||||
| 80 | 19.4 | 8.6 | 45.6 | ||||
|
65ZJL-A30 |
1470 |
38 | 34.7 | 8.2 | 43.7 |
Y180M-4 V1 380V 18.5kw |
|
| 58 | 31.9 | 9.7 | 51.9 | ||||
| 98 | 26.0 | 13.4 | 51.7 | ||||
|
960 |
25 | 14.8 | 2.3 | 43.7 |
Y132M2-6 V1 380V 5.5kw |
||
| 38 | 13.6 | 2.7 | 51.9 | ||||
| 64 | 11.1 | 3.7 | 51.7 | ||||
|
50ZJL-A40 |
1470 |
31 | 58.3 | 16.5 | 29.9 |
Y200L-4 V1 380V 30kw |
|
| 47 | 51 | 19.1 | 34.1 | ||||
| 65 | 37.9 | 22.1 | 30.3 | ||||
|
970 |
21 | 25.4 | 4.9 | 29.9 |
Y160L-6 V1 380V 11kw |
||
| 31 | 22.2 | 5.5 | 34.1 | ||||
| 43 | 16.5 | 6.4 | 30.3 | ||||
|
50ZJL-A36 |
1470 |
36 | 42.7 | 15.7 | 31.2 |
Y200L-4 V1 380V 30kw |
|
| 63 | 37.8 | 18.7 | 39.4 | ||||
| 85 | 29.3 | 20.7 | 33.5 | ||||
|
970 |
24 | 19.1 | 4.7 | 31.2 |
Y160L-6 V1 380V 11kw |
||
| 42 | 16.9 | 5.6 | 39.4 | ||||
| 57 | 13.1 | 6.2 | 33.5 | ||||
|
50ZJL-A20
|
1440 |
17.1 | 10.7 | 1.4 | 34.9 |
Y112M-4 V1 380V 4kw |
|
| 24.7 | 9.2 | 1.6 | 38.6 | ||||
| 38.0 | 6.0 | 2.0 | 31.2 | ||||
|
910 |
10.8 | 4.3 | 0,4 | 34.9 |
Y90L-6 V1 380V 1.1kw |
||
| 15.6 | 3.7 | 0,4 | 38.6 | ||||
| 24.0 | 2.4 | 0,5 | 31.2 | ||||
|
40ZJL-A35
|
1470 |
23.7 | 42.9 | 12.8 | 27.3 |
Y180L-4 V1 380V 22kw |
|
| 42.3 | 34.3 | 13.7 | 33.8 | ||||
| 47.6 | 30.5 | 14.1 | 28.1 | ||||
|
970 |
15.8 | 19.2 | 3.8 | 27.3 |
Y160M-6 V1 380V 7.5kw |
||
| 28.3 | 15.3 | 4.1 | 33.8 | ||||
| 31.8 | 13.6 | 4.2 | 28.1 | ||||
|
40ZJL-A25
|
1440 |
10.1 | 21.5 | 2.3 | 26.1 |
Y132S-4 V1 380V 5.5kw |
|
| 18.4 | 19.0 | 2.6 | 36.6 | ||||
| 22.9 | 16.8 | 2.8 | 37.6 | ||||
|
910 |
6.6 | 9.2 | 0,6 | 26.1 |
Y90L-6 V1 380V 1.1kw |
||
| 12 | 8.1 | 0,7 | 36.6 | ||||
| 14.9 | 7.2 | 0,7 | 37.6 | ||||
|
40ZJL-A21
|
1440 |
9.5 | 17.0 | 1.6 | 27.9 |
Y112M-4 V1 380V 4.0kw |
|
| 20.3 | 15.3 | 2.0 | 42.4 | ||||
| 25.9 | 14.1 | 2.2 | 44.6 | ||||
|
910 |
6.0 | 6.8 | 0,4 | 27.9 |
Y90L-6 V1 380V 1.1kw |
||
| 12.8 | 6.1 | 0,5 | 42.4 | ||||
| 16.4 | 5.6 | 0,6 | 44.6 | ||||
